스테인레스 스틸 로터리 드럼 스크린

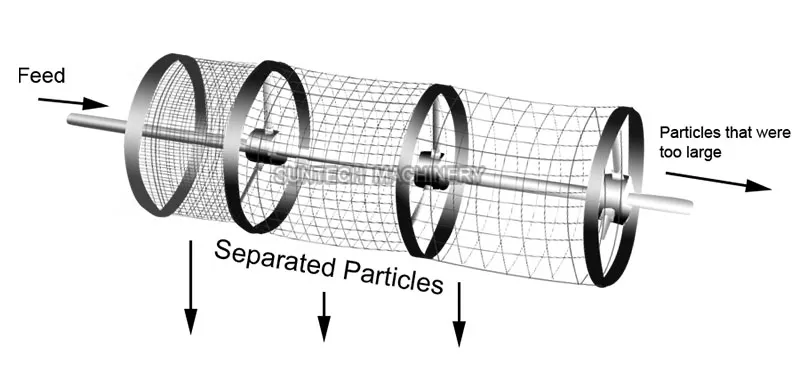

Stainless Steel Rotary Drum Screen is one kind of general coarse sieving machine with large handling capacity. Different from the vibrating screen, the drum screen structure is installed one screen layer with different mesh size in different segment. Feeding from the inlet, the different size granules will be separated by different segment screen mesh or different screen apertures when going through the different segment screen.
- 제품 소개

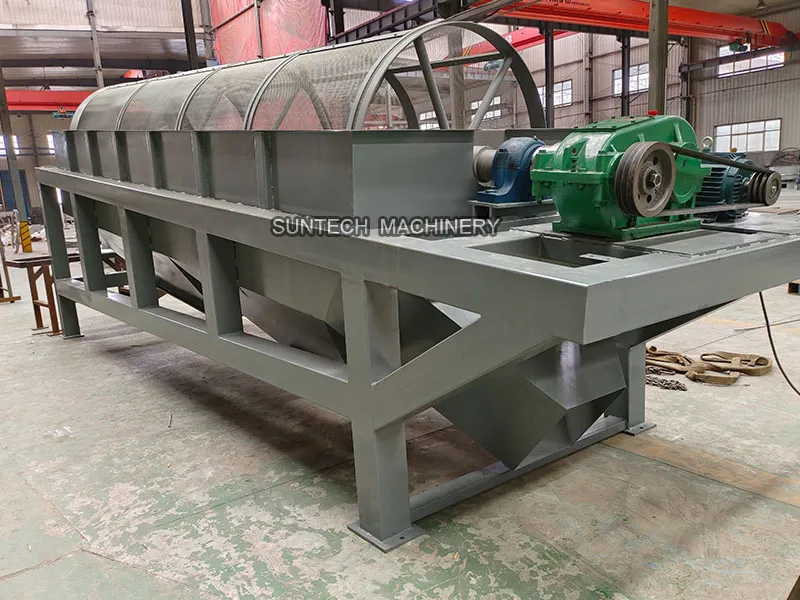

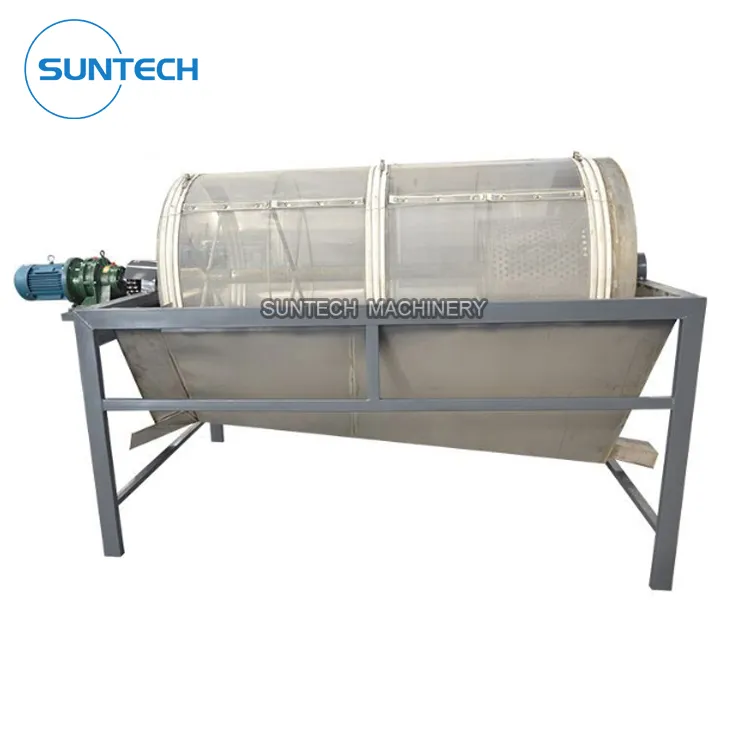

Except for the transmission part, the stainless steel Rotary Drum Screen is made of stainless steel 304 or S316. The screen can be punched and then mechanically rolled so that it does not damage the material during use or the wire woven mesh. The screen aperture can also be designed according to user requirements. During production, the products are transported to the drum screen through the elevator or conveyor. Due to the transmission function, the drum is constantly running, and the materials are graded from small to large. The raw materials can be divided into grades 2-5, which is suitable for grading mushrooms, water chestnuts, grapes, longans and other mineral, chemical or food products according to different sizes and specifications.
1. Adopt the drum rotating principle, the friction coefficient is small, the wear is light, and the screen holes are not easy to be blocked.
2. Adopts an integral through-shaft structure for the drum screen support , it can ensures smooth operation, no vibration and low noise.
3. The internal drum screen sieve adopt a separate design, with a simple structure and fast and convenient replacement and maintenance.
4. The drum screen adopts an effective fully sealed structure, which does not generate dust or cause pollution.
5. The operation is safe and reliable. It adopts reduction transmission, has high transmission efficiency, low motor power, low energy consumption and obvious energy saving.
6. Different screen materials and screen hole sizes can be customized according to customer requirements, with high screening efficiency, long service life and low maintenance cost.
|
|
(m) |
|
|
|
|
|
|
(m3/h) |
|
GTS600 |
2~4 |
1~3 |
5~35 |
2.2~3 |
7 degree |
35 |
20 |
10 |
|
GTS800 |
2~4 |
1~3 |
5~40 |
2.2~5.5 |
7 degree |
45 |
18 |
14 |
|
GTS1000 |
2~6 |
1~4 |
5~45 |
3~7.5 |
7 degree |
60 |
16 |
16 |
|
GTS1200 |
2~8 |
1~4 |
5~50 |
4~11 |
7 degree |
70 |
15 |
20 |
|
GTS1500 |
2~8 |
1~4 |
5~55 |
4~15 |
7 degree |
80 |
12 |
32 |
|
GTS2000 |
2~9 |
1~4 |
5~60 |
5.5~18.5 |
7 degree |
90 |
8 |
45 |
In the food industry, stainless steel drum screens are also widely used. Since food processing requires strict hygiene standards, stainless steel trommel screens have become the preferred equipment for food processing companies due to their easy cleaning and anti-contamination properties. In industries such as flour milling and sugar refining, stainless steel drum screens can effectively separate materials of different specifications and improve product quality and output.
